• Wheels, 4 - 17" x 7" (43.2 cm x 17.8 cm) steel includes steel spare (Requires TG13406 or TH13406 models.)
• Tires, front P245/70R17 all-season, blackwall (Requires TG13406 or TH13406 models standard tire.)
• Tires, rear P245/70R17 all-season, blackwall (Requires TG13406 or TH13406 models standard tire.)
• Tire, spare P245/70R17 all-season, blackwall (Requires TG13406 or TH13406 models standard tire.)
• Body, standard
• Bumpers, front and rear painted Black with step-pad (Not available when ordered with (V37) front and rear chrome bumpers.)
• Grille, Black composite with single rectangular halogen headlamps
• Headlamps, halogen
• Mirrors, outside manual, Black
• Glass, Solar-Ray deep-tinted (all windows except light-tinted glass on windshield and driver- and front passenger-side glass)
• Glass, swing-out side door windows
• Glass, swing-out rear cargo door windows
• Glass, full-body window package (Includes (A18) swing-out rear cargo door window glass and (A19) swing-out side door window glass.)
• Wipers, front intermittent wet-arm with pulse washers
• License plate kit, front
• Door, swing-out passenger-side, 60/40 split

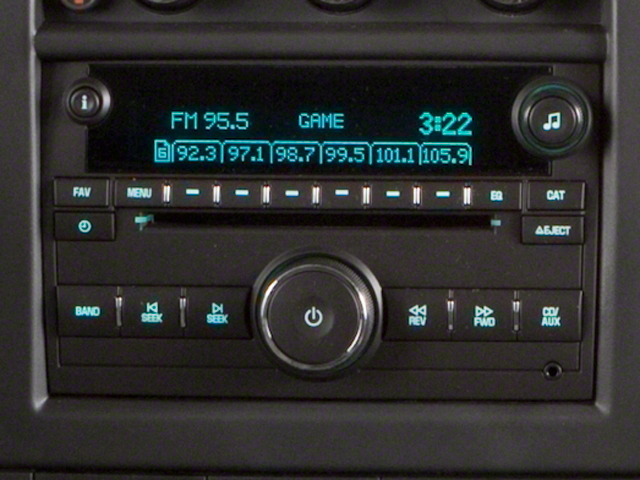

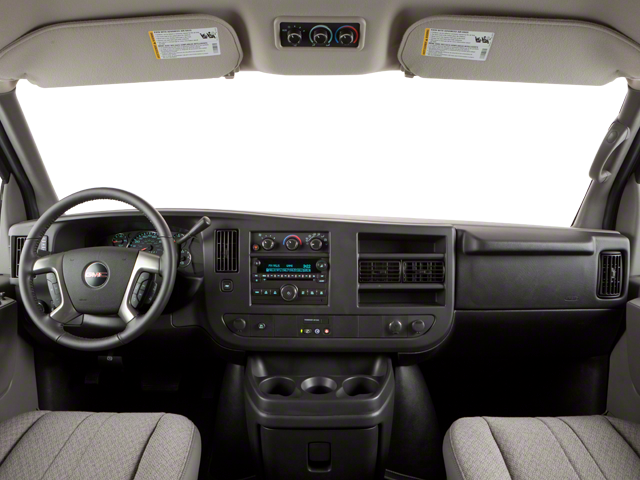

• Audio system, AM/FM stereo with seek-and-scan, digital clock and 2 front door speakers

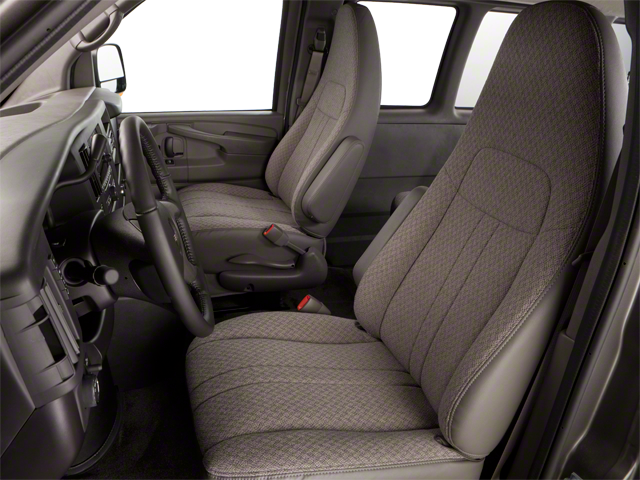

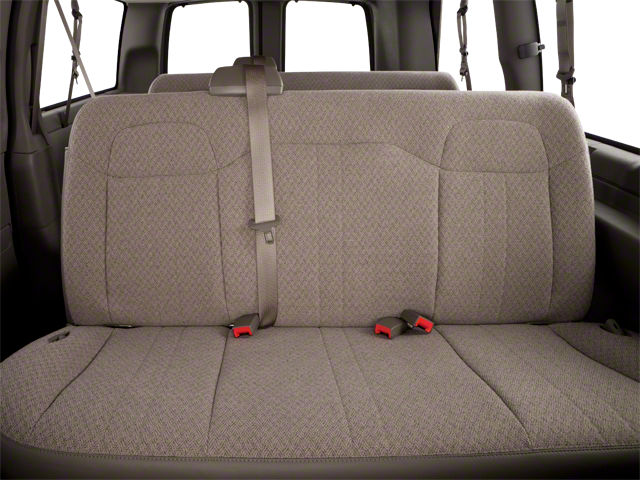

• Seats, front bucket with vinyl trim and outboard head restraints, includes inboard armrests (Requires (**W) interior trim. When ordering a seating arrangement that includes rear seats, includes rear bench seats with vinyl trim. Head restraints are not available on rear bench seats.)
• Seating, 8-passenger, (2-3-3 seating configuration) (Standard on TG13406 or TH13406 model only. Available on TG23406 or TG33406 models.)
• Floor covering, full-length Black rubberized-vinyl

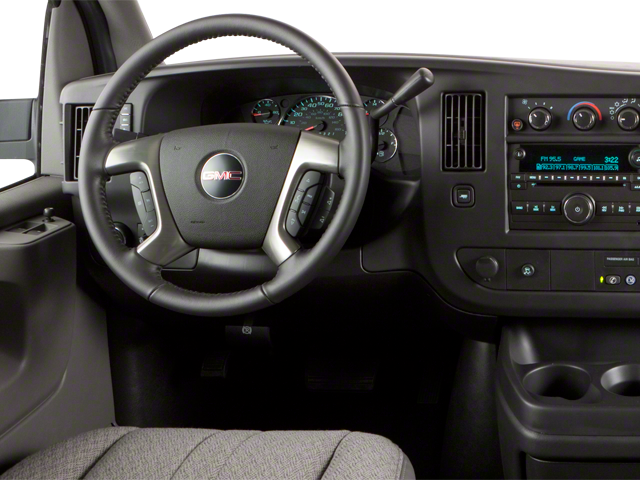

• Steering wheel steel sleeve column with theft-deterrent locking feature, Black
• Oil life monitor
• Warning tones, headlamp on and key-in-ignition
• Theft-deterrent system, vehicle, PASS-Key III

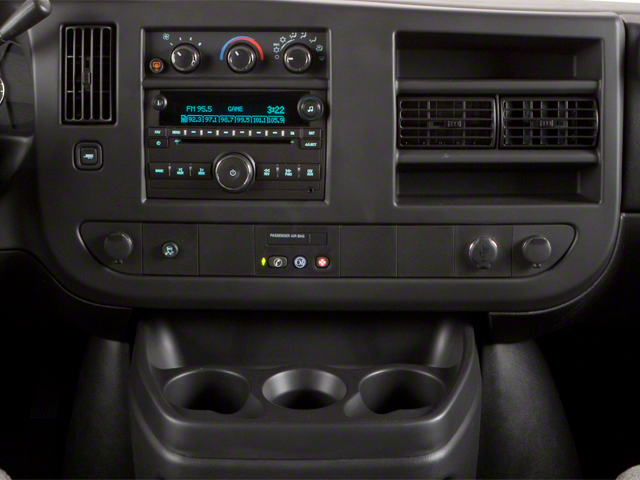

• Air conditioning, single-zone manual
• Defogger, front and side windows
• Mirror, inside rearview manual day/night
• Headliner, cloth
• Visors, driver and front passenger, cloth, padded (Not available on TG33706 models. Not available with (TR9) auxiliary lighting or (C69) rear air conditioning or (DAA) driver and front passenger vinyl visors or (DH6) driver and front passenger visors padded with cloth trim.)
• Assist handle, front passenger
• Lighting, interior with 2 dome lights defeat switch and door handle-activated switches

• StabiliTrak, traction assistance and vehicle stability enhancement system
• Door beams, steel-side
• Daytime Running Lamps
• Air bags, frontal, driver and right-front passenger (Includes passenger-side air bag deactivation switch for models with (C6P) 8600 lbs. (3901 kg) GVWR and above. Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bags, head/side-curtain provides coverage for first 3-rows only. Enhanced-technology glass is provided for the fourth and fifth rows when equipped with 12- and 15-passenger seating. (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• OnStar, 6 months of Directions and Connections plan includes Automatic Crash Response, Emergency Services, Crisis Assist, Stolen Vehicle Assistance including Remote Ignition Block, Remote Door Unlock, Turn-by-Turn Navigation with Destination Download (requires navigation radio) and OnStar eNav (where available), OnStar Vehicle Diagnostics, Roadside Assistance, Remote Horn and Lights, and Hands Free Calling. (Also includes Stolen Vehicle Slowdown. Visit onstar.com for details and system limitations.)
• Automatic Crash Response (Deleted when (UE0) OnStar delete is ordered.)
• Stolen Vehicle Assistance (Deleted when (UE0) OnStar delete is ordered.)
• OnStar Turn-by-Turn Navigation (Deleted when (UE0) OnStar delete is ordered.)
• Child seat anchors all three passenger rear seats have four anchors and two tethers
• Tire Pressure Monitoring System (does not apply to spare tires)

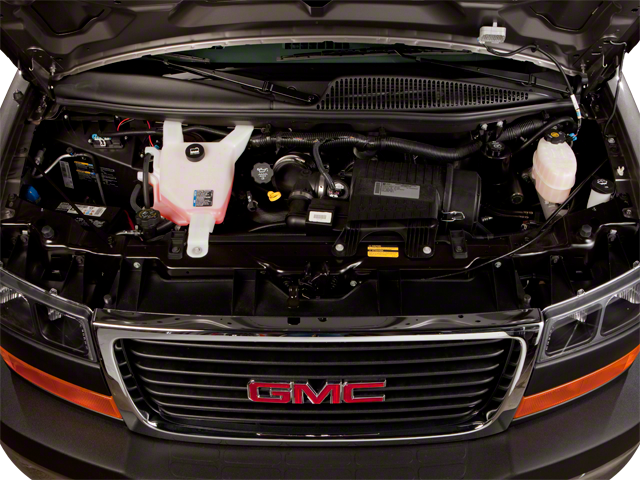

ENGINE, VORTEC 5.3L V8 SFI FLEXFUEL

• (310 hp [231.1 kW] @ 5200 rpm
• 334 lb-ft of torque [450.9 N-m] @ 4500 rpm) (STD)

• Auxiliary Lighting
• Convenience Package
• Preferred Equipment Group 1LS
• 2 Speakers
• AM/FM radio
• AM/FM Stereo w/Seek & Scan
• Air Conditioning
• Rear Air
• Rear Auxiliary Heater
• Power steering
• Traction control
• 4-Wheel Disc Brakes
• ABS brakes
• Emergency communication system
• Front anti-roll bar
• Front wheel independent suspension
• Low tire pressure warning
• mutu
• Overhead airbag
• Power Door Locks w/Lock-Out Protection
• Sliding Passenger-Side Door
• Electronic Stability Control
• Delay-off headlights
• Fully automatic headlights
• Cruise Control
• 145 Amp Alternator
• Underhood Lights
• 8-Point Digital Compass
• Driver & Front Passenger Padded Visors
• Driver door bin
• Passenger seat mounted armrest
• Reading Lights
• Tachometer
• Tilt Steering Wheel
• Trip computer
• Voltmeter
• 3rd row seats: bench
• 8-Passenger Seating (2-3-3 Seating Configuration)
• Custom Vinyl Seat Trim
• Driver's Seat Mounted Armrest
• Front Bucket Seats
• Front Reclining High-Back Bucket Seats
• Passenger door bin
• 17" x 7" Steel Wheels
• Variably intermittent wipers
• 3.42 Rear Axle Ratio
• **Certified by Carfax One-Owner No Accidents**
• **WILL NOT LAST LONG AT THIS PRICE**
• **LOW MILES**
• **Service Inspection Records Available**
• **Fully Inspected by a Certified Technician**
• **Fully detailed Inside and Out**
• **We Deliver Anywhere**

• Vehicle
• Rear Door Type: Swing-Out
• Mileage
• Fuel Economy Est-Combined (MPG): 14
• EPA Fuel Economy Est - City (MPG): 13
• EPA Fuel Economy Est - Hwy (MPG): 17
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 125
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3600
• Gross Axle Wt Rating - Rear (lbs): 4000
• Curb Weight - Front (lbs): 3104
• Curb Weight - Rear (lbs): 2540
• Gross Vehicle Weight Rating Cap (lbs): 7300
• Gross Combined Wt Rating (lbs): 12000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 6200
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 930
• Maximum Trailering Capacity (lbs): 6200
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Hypoid Drive
• Spring Capacity - Front (lbs): 3600
• Spring Capacity - Rear (lbs): 4000
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 3600
• Axle Capacity - Rear (lbs): 4000
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): 1.30
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.0 x 1.1
• Rear Brake Rotor Diam x Thickness (in): 13.0 x 1.2
• Tires
• Front Tire Order Code: XPR
• Rear Tire Order Code: YPR
• Spare Tire Order Code: ZPR
• Front Tire Size: P245/70R17
• Rear Tire Size: P245/70R17
• Spare Tire Size: P245/70R17
• Front Tire Capacity (lbs): 2004
• Rear Tire Capacity (lbs): 2004
• Spare Tire Capacity (lbs): 2004
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 7.0
• Rear Wheel Size (in): 17 x 7.0
• Spare Wheel Size (in): 17 x 7.0
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.2
• Steering Ratio (:1), At Lock: 17.2
• Turning Diameter - Curb to Curb (ft): 43.4
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder-type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 31.0
• Fuel Tank Location: Mid-frame
• Doors
• Side Door Type: Swing-Out
• Exterior Dimensions
• Wheelbase (in): 135.0
• Length, Overall w/rear bumper (in): 224.1
• Width, Max w/o mirrors (in): 79.2
• Height, Overall (in): 83.7
• Overhang, Front (in): 39.7
• Overhang, Rear w/bumper (in): 49.4
• Ground to Top of Load Floor (in): 29.1
• Ground Clearance, Front (in): 8.0
• Ground Clearance, Rear (in): 7.4
• Rear Door Opening Height (in): 49.4
• Rear Door Opening Width (in): 57.0
• Side Door Opening Height (in): 47.9
• Side Door Opening Width (in): 44.1
• Step Up Height - Front (in): 17.7
• Step Up Height - Side (in): 18.3
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): 153.6
• Cargo Area Length @ Floor to Seat 1 (in): 126.2
• Cargo Area Length @ Floor to Seat 2 (in): 89.1
• Cargo Area Length @ Floor to Seat 3 (in): 57.1
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 50.4
• Cargo Box (Area) Height (in): 51.8
• Cargo Volume to Seat 1 (ft³): 216.2
• Cargo Volume to Seat 2 (ft³): - TBD -
• Cargo Volume to Seat 3 (ft³): 92.1
• Interior Dimensions
• Passenger Capacity: 8
• Front Head Room (in): 39.8
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 68.8
• Front Hip Room (in): 65.5
• Second Head Room (in): 38.4
• Second Leg Room (in): 36.3
• Second Shoulder Room (in): 68.6
• Second Hip Room (in): 65.6
• Third Head Room (in): 38.5
• Third Leg Room (in): 36.6
• Third Shoulder Room (in): 65.8
• Third Hip Room (in): 63.3
• Summary

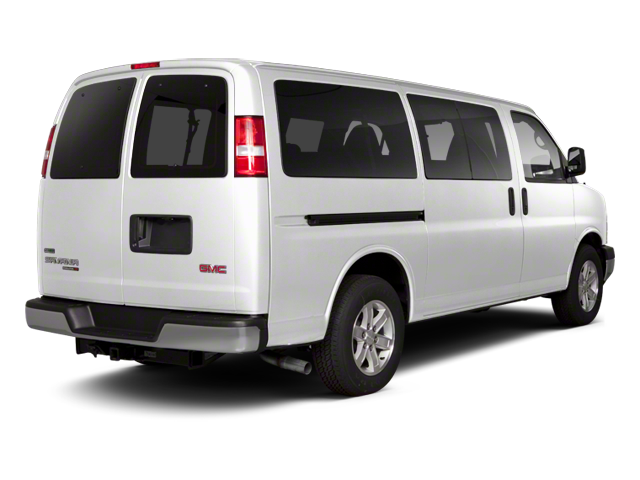

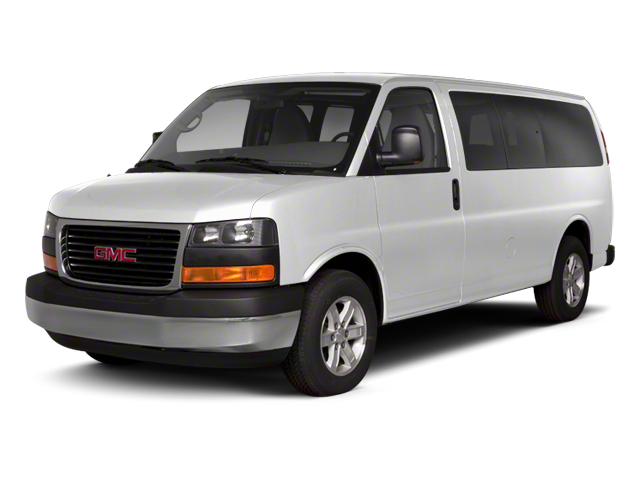

• Vehicle Name: GMC Savana Passenger
• Body Style: 1500 135" WB
• Body Code: ZW9
• Emissions
• EPA Greenhouse Gas Score: 1
• Tons/yr of CO2 Emissions @ 15K mi/year: 13.3
